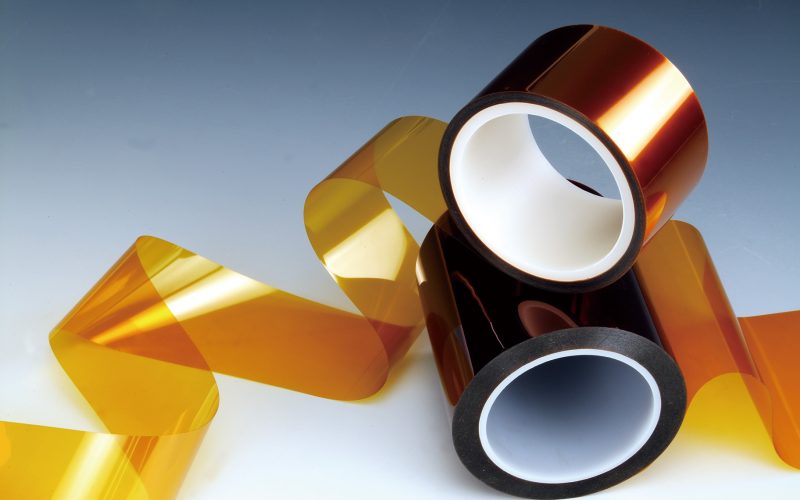

Double Sided Polyimide Tapes
With silicone adhesive, it can withstand high temperature up to 260℃ and can be removed without leaving any adhesive residue.
Silicone coated on both sides, thickness can be customized
PCB and semiconductor high temperature bonding.
Item Model | Material Thickness(µm) | Thickness (mm) | Color | 180° Peel Adhesion (kg/inch) | Temperature Range(°C) |
WSDAS series | 25 | 0.061 | Amber | 0.4↑/0.6↑ | 180°C*0.5HR |
0.145 | 1.0↑/ 1.0↑ | ||||
50 | 0.163 | 1.2↑/ 0.6↑ | |||
0.140 | 0.4-0.6/ 1.2↑ | ||||
0.200 | 0.6-1.0/0.6-1.0 |
